Documentation for Sub-Woofer Crossover |
Frequency/Phase Response
|
The waveforms above are typical of the smooth sine waves
I found at the output of both filters, except for the
anomaly around 60Hz in the high-pass output.
Although the amplitude is 15-20db down, it is audible.
This may take some time and probing to resolve.
|
Monaural Sub-Woofer Crossover: Center Frequency: 150Hz ; Slope: 18db/octave
|

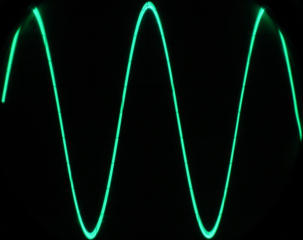

20Hz Low-Pass
|
40Hz Low-Pass
|

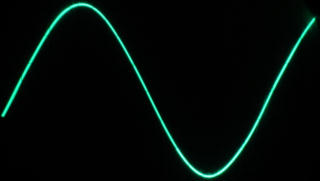

50Hz Low-Pass
|

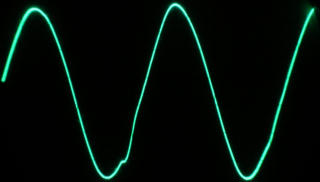

60Hz High-Pass (ouch!)
|

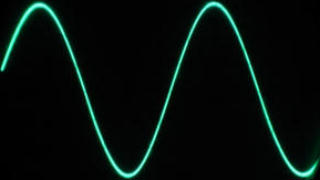

70Hz High-Pass
|

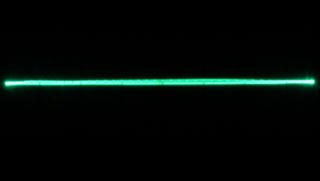

20Hz
|

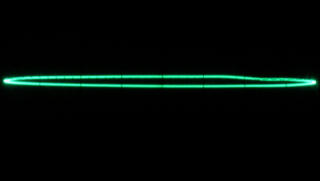

60Hz
|

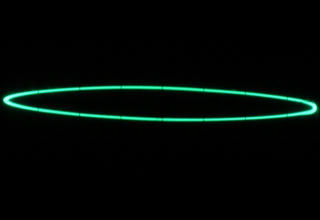

80Hz
|

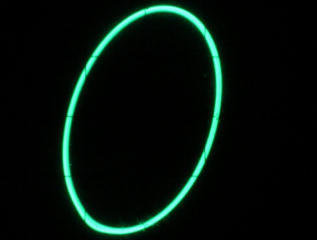

200Hz
|
400Hz
|
600Hz
|

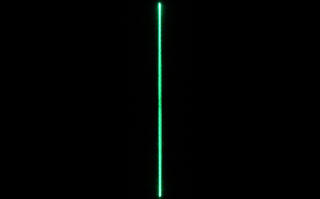

800Hz
|
Phase relationships of the filters can be determined by connecting the high-pass output of the crossover to the vertical input of an oscilloscope and connecting the low-pass output to the horizontal input of the scope, generating the X-Y patterns above. Note that the
glitch at 60Hz is readily visible.
|
